High Capacity Pressure Sets

Description

The electric pump is mounted on top of a steel pressure tank containing a rubber membrane which is surrounded by pressurised air. This air is further compressed as water is pumped into the membrane until a pre-set pressure is reached at which point the pressure switch automatically turns the pump off and a non-return valve prevents the water running back. The compressed air acts as a spring which stores the pressure while the pump is not running. The store of water under pressure is available immediately a tap is turned on (or a ball cock opens) and as the pressure in the tank starts to drop, the pump switches back on automatically. The pressure switch and air pressure can be adjusted by the user if necessary to suit individual applications.

A range of pressure sets fitted with high capacity pressure tanks to provide a greater reserve of water stored under pressure.

Applications:

• Dairy and Stock Farms
• Groups of Houses
• Campsites and Holiday Complexes
• Industrial Applications

Advantages:

• Increases available flow during peak demand periods.
• Reduces running costs.
• Reduces on/off switching rate of pump and minimises wear.

W1000 SERIES CAM 100

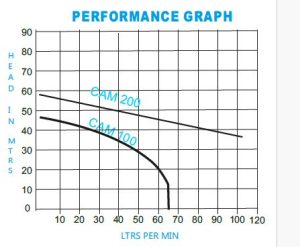

The Cam 100 1 HP, single phase, self priming pressure set made up of either a 100 or 300 litre pressure tank.  Maximum head of 52 meters and 60 lpm flow rate.  Runs at 4.7 amps

W1500 SERIES CAM 200

A 2 HP, single phase, self priming pressure set.  Available with a 100, 300 and 500 litre pressure tank.  Maximum head is 58 meters and 120 lpm flow rate. Runs at 9.8 amps.

It is recommended that a float accompanies these pressure sets to protect from dry running.

Dual Pump Systems are also available – call us 01769 579487 for more details.
